In complex architectural, commercial, and experiential construction, standard off-the-shelf structural elements often fail to satisfy unique architectural geometry, severe load requirements, or tight spatial constraints. Custom fabrication for structural components bridges the gap between ambitious architectural intent and structural engineering reality.
From heavy-duty structural steel frameworks to bespoke architectural canopies and seismic bracing systems, custom structural fabrication delivers mill-grade precision, optimized load-to-weight efficiency, and full compliance with strict North American building standards.
What Is Custom Structural Component Fabrication?
Custom structural component fabrication is the specialized engineering, cutting, forming, welding, and finishing of load-bearing metal assemblies tailored to exact project blueprints. Unlike mass-produced structural shapes, custom-fabricated components are engineered to meet specific load-bearing tolerances, deflection limits, geometric configurations, and architectural finishes.
Key structural components produced through custom fabrication include:
- Primary Structural Members: Custom built-up plate girders, heavy box columns, transfer trusses, and tapered moment frames.
- Architectural & Hybrid Structural Assemblies: Architecturally Exposed Structural Steel (AESS), custom cantilevered canopy supports, architectural stair stringers, and space frames.
- Connection & Foundation Hardware: Base plates, heavy anchor bolt cages, shear tabs, embed plates, and custom gusset connection assemblies.
- Lateral & Seismic Bracing: Buckling-restrained braces (BRBs), chevron bracing, and rigid moment-connection assemblies.
Material Selection & Engineering Standards
Selecting the proper alloy and structural grade is critical to ensuring yield strength, ductility, weldability, and corrosion resistance across various operating environments.
Structural Metal Comparison Matrix
| Material Grade | Yield Strength (Fy) | Tensile Strength (Fu) | Common Applications | Key Engineering Standards |
|---|---|---|---|---|
| ASTM A992 | 50 ksi (345 MPa) | 65 ksi (450 MPa) | Wide-flange beams, columns, primary framing | AISC 360, ASTM A992/A992M |
| ASTM A36 | 36 ksi (250 MPa) | 58–80 ksi (400–550 MPa) | Base plates, gusset plates, custom channels, brackets | ASTM A36/A36M, AWS D1.1 |
| ASTM A500 (Gr. B/C) | 46–50 ksi (315–345 MPa) | 58–62 ksi (400–427 MPa) | Hollow structural sections (HSS), architectural columns, trusses | ASTM A500, AISC 360 |
| 316L Stainless Steel | 30 ksi (205 MPa) | 75 ksi (515 MPa) | Marine/corrosive structural elements, exterior canopies, architectural façades | ASTM A240, AWS D1.6 |
| 6061-T6 Aluminum | 35 ksi (240 MPa) | 42 ksi (290 MPa) | Lightweight canopies, secondary architectural framing, pedestrian bridges | AWS D1.2, AA ADM-1 |
End-to-End Custom Structural Fabrication Workflow
Achieving dimensional accuracy on large-scale structural assemblies requires a rigorous, multi-stage production and quality assurance pipeline.
[ 1. 3D BIM & Tekla Detailing ] ──► [ 2. High-Precision CNC Cutting ] ──► [ 3. Forming & Fit-Up ]
│
[ 6. Surface Finishing & Coating ] ◄── [ 5. QA & NDT Inspection ] ◄── [ 4. Certified CWI Welding ]
1. 3D BIM Modeling and Shop Detailing
Before cutting metal, structural models are developed or imported into 3D modeling systems (such as Tekla Structures or SDS2). This ensures clash detection, coordinates bolt hole patterns with foundation layouts, and generates direct CNC machine files (DSTV/NC1) for automated processing.
2. Precision CNC Profiling and Preparation
- Fiber Laser & High-Definition Plasma: Heavy plates up to 2″+ thickness are cut with tight edge tolerances (±0.010″), minimizing heat-affected zones (HAZ).
- Automated Beveling: Edges are prepped with single-V, double-V, or J-groove bevels to ensure complete-joint-penetration (CJP) welds under AWS D1.1 requirements.
- Beam Coping and CNC Drilling: Automated multi-axis beam lines mill, cope, and drill bolt holes with repeatable center-to-center accuracy.

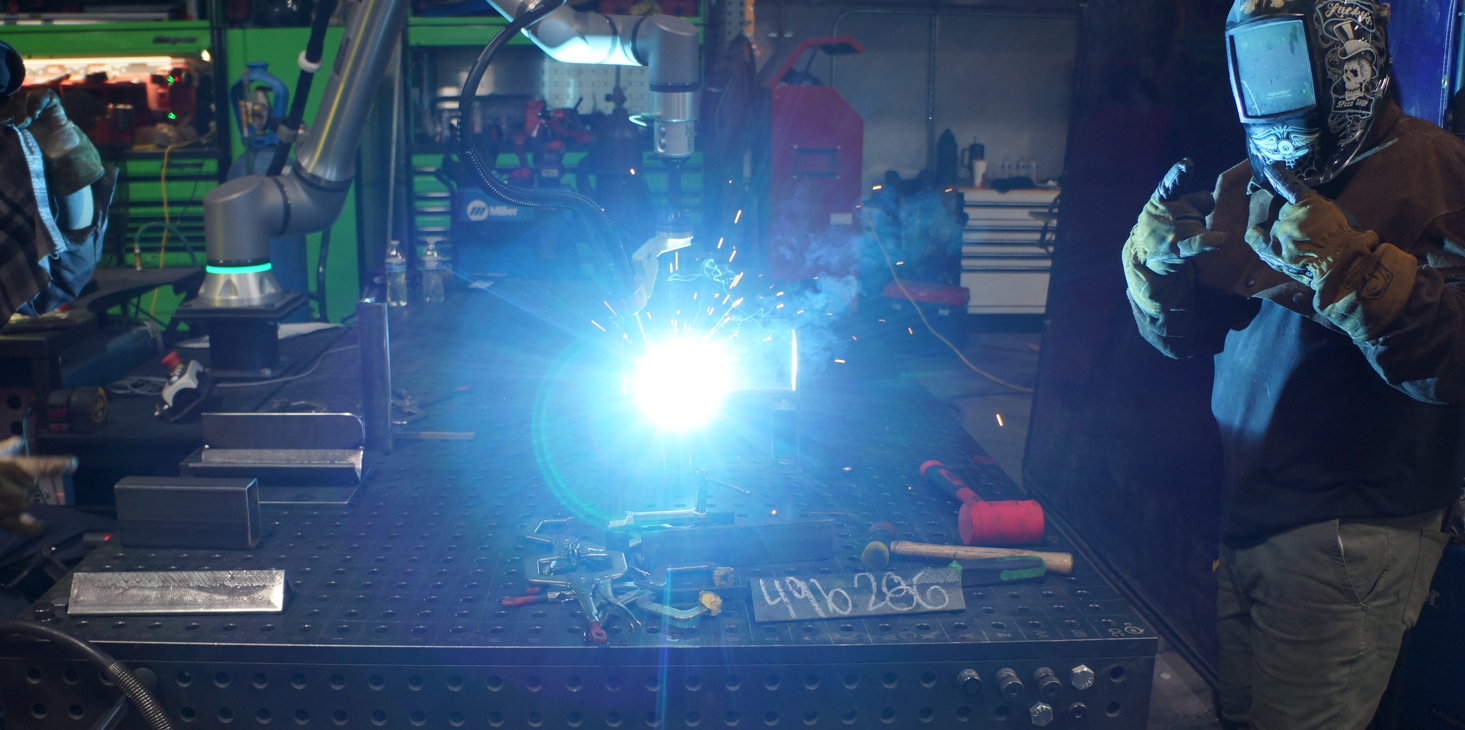

3. Certified Welding & Assembly (AWS D1.1 / CWI)
Structural welds are executed by certified welders in accordance with approved Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR). Processes include:
- FCAW (Flux-Cored Arc Welding): High-deposition welding for heavy structural plate connections.
- GMAW (MIG Welding): Precision structural tubing, AESS components, and architectural assemblies.
- SAW (Submerged Arc Welding): Automated deep-penetration longitudinal welds on heavy box columns and built-up plate girders.
4. Quality Control & Non-Destructive Testing (NDT)
To verify internal weld soundness without compromising component integrity, quality control protocols include:
- Visual Testing (VT): Performed by an AWS Certified Welding Inspector (CWI) during fit-up and post-weld.
- Ultrasonic Testing (UT) & Phased Array: Evaluates complete-joint-penetration (CJP) groove welds for internal inclusions, porosity, or lack of fusion.
- Magnetic Particle (MT) & Liquid Penetrant (PT): Detects surface and near-surface discontinuities on critical load-bearing joints.
5. Architectural Finishing and Corrosion Protection
- Hot-Dip Galvanizing (ASTM A123): Provides long-term metallurgical zinc coating for exterior and industrial exposure.
- High-Performance Multi-Coat Systems: Zinc-rich epoxy primers paired with polyurethane or fluoropolymer topcoats for severe marine/UV environments.
- Architecturally Exposed Structural Steel (AESS): Grinding weld contours, filling seams, and applying uniform primers for structural steel intended to remain visible in occupied spaces.
The Strategic Value of Custom Fabrication in Complex Architecture
- Facilitates Complex Geometry: Allows architects to realize non-orthogonal geometries, sweeping cantilevers, and irregular grid layouts that standard mill shapes cannot accommodate.
- Optimized Strength-to-Weight Ratios: Built-up sections allow engineers to place steel mass exactly where bending moments and shear stresses peak, reducing total structural weight and foundation loads.
- Accelerated Field Erection: Precision CNC shop fabrication, pre-drilled slotted connections, and pre-fit modular subassemblies significantly reduce crane time, on-site cutting, and field welding.
- Guaranteed Compliance & Traceability: Mill test reports (MTRs), heat numbers, and comprehensive NDT inspection logs provide full structural accountability for building officials and structural engineers of record (EOR).
Frequently Asked Questions (FAQ)
What is the difference between standard and custom structural steel fabrication?
Standard structural fabrication involves cutting and drilling stock mill shapes (such as standard W-beams and HSS tubes) to length for conventional post-and-beam construction. Custom structural fabrication entails engineering and building specialized, load-bearing assemblies—such as built-up plate girders, custom radius members, AESS components, and complex multi-planar connections—tailored to specific architectural blueprints.
What welding standards govern structural component fabrication?
In North America, structural steel fabrication is primarily governed by AWS D1.1 / D1.1M (Structural Welding Code – Steel) and AISC 360 (Specification for Structural Steel Buildings). Structural aluminum is governed by AWS D1.2, and structural stainless steel is governed by AWS D1.6.
What documentation is required for custom structural fabrication?
Key quality deliverables include Mill Test Reports (MTRs) for raw material traceability, approved Shop Drawings, Welding Procedure Specifications (WPS), Welder Performance Qualification Records (WPQR), and Certified Welding Inspector (CWI) Non-Destructive Testing (NDT) reports.
